UTML Ref: 4049


MAIN TITLE INFORMATION

DESCRIPTION and TECHNICAL DETAILS

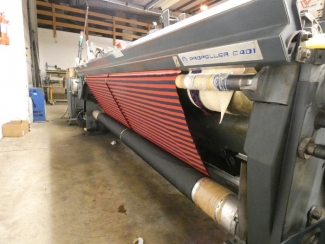

    1 x 2.1m Vamatex Leaonardo loom

    Brief technical information:
    •    Type: Propeller C401
    •    Width: 2100mm
    •    Weft Insertion: Rapier
    •    Weft Colours (Max): 8
    •    Colours fully installed 8
    •    Accumulators: 6
    •    Dobbie Fimtextile
    •    Heald Frames: 14 (Min)
    •    Installed undermotions 20
    •    Cone stand: 1
    •    Selvedge waste bin: 1
    •    Dropper bars: 8
    •    Warp beams: 1 (flange: 800mm)
    •    Cloth rollers: 1

    •    Electrical Supply: 3 Phase 380-440v, 50Hz
    •    Spare parts: All related spare parts and accessories available in the factory (If any).
    •    Manuals: All manuals available in the factory (If any).

    Machine Dimensions:
      -    Length: 3.5 metres
      -    Width: 1.5 metres
      -    Height: 1.5 metres

    Additional Information:
    Status:          Still operational but not in production (can be seen running)
    Condition:    Complete and in excellent condition
    Location:      United Kingdom
    Availability:   Immediately

    More pictures available upon request
