C1-NWN116 : 1 x 2.1m Thibeau, Asselin Needle Punch Nonwoven Line, 1989

    1 x 2.1m Thibeau, Asselin Needle Punch Nonwoven Line.

    Brief technical information:
    •     Pneumatic Conveyors 8m conveyor.
    •     Pneumatic Conveyors Single pin sheet blending hopper with Volumetric feed
    •     Haigh Chadwick Fearnaught Fibre opening
    •     Oiling (Garnett Controls)
    •     Fan with Metal detection
    •     Pneumatic Conveyors Fabric condenser and feed tower
    •     Pneumatic Conveyors Hopper with volumetric Card Feed
    •     Radioactive Fibre Weight measurement (Not included in sale)
    •     2.5m Thibeau nonwoven card:
      -    Type: 123PP 12382 (Swift Diameter 1200mm)
    •     Asselin Cross Lapper with 2.5m output (Type 350)
    •     Sound Cabinet
    Asselin pre needle:
      -    Type: 169DF
      -    Stroke: Down
      -    Gap Max: 40mm
    Asselin Needle loom 1:
      -    Type: 1080S
      -    Board pattern: IW24-200 28 - 4500
      -    Stroke: Down
      -    Needle Density: 4500 needles /m
      -    Max Gap: 40mm
      -    Max rpm: 800/min
      -    Max needled width: 2.10m

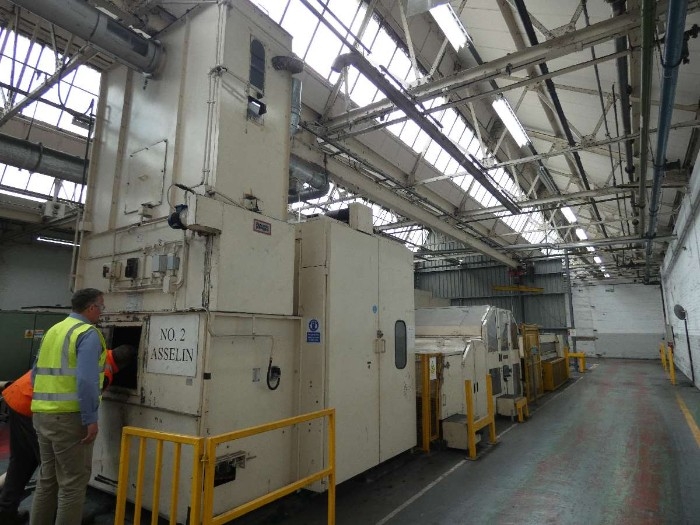

    Asselin Needle loom 2:
      -    Type: 1080 I
      -    Board pattern: IW24-200 28 - 4500
      -    Stroke: Up
      -    Needle Density: 4500 needles /m
      -    Max Gap: 40mm
      -    Max rpm: 900/ min
      -    Max needled width: 2.1m (To Be Confirmed)
    •     Cross Cut
    •     Edge trim
    •     Fabric Measure
    •     Batching roller wind-up
    •     Electrical Supply: 3 Phase 380-440v, 50Hz
    •     Manuals: Card and loom manuals.

    Currently being used in the production of: Needle Punch fabrics for the automotive industry
    •     Max production rate: 360 kg/h
    •     Max Width used: 2.00m
    •     Max weight: 830 g/m
    •     Max speed current 4.5m/min

    Re-furbished with new controllers in 2017

    Machine Dimensions:
      -    Length: 11 metres
      -    Width: 4 metres
      -    Height: 6 metres

    Additional Information:
    Status:          Still operating and can be seen running
    Condition:    In need of a good clean but otherwise in good working condition
    Location:      United Kingdom
    Availability:   Immediately

    More pictures available upon request <
